The Axis Rebel T22HD is the result of more than 15 years of rebuilding, repairing, and improving harvester heads from every major manufacturer. Built in Canada and proven in demanding forestry applications, the T22HD was designed to maximize uptime, simplify maintenance, and deliver the performance contractors need to stay productive and profitable.
Rebel Field Day
Built On Tradition
Strong Demo
Design
BUILT BY THE PEOPLE WHO REBUILD THEM
For more than 16 years, Axis Forestry has rebuilt harvester heads from nearly every major manufacturer. That experience provided a unique opportunity to see what works, what fails, and what operators truly need in the woods. The Rebel T22HD is the result of those lessons—combining proven design concepts with modern engineering, premium materials, and direct factory support to create a harvester head built for long-term ownership.
Power
PRODUCTION THROUGH POWER
Power isn't just hydraulic pressure—it's the combination of intelligent design, efficient hydraulics, responsive controls, and operator confidence. The Rebel T22HD was engineered as a complete harvesting system, integrating the harvester head, Cypress controller, and hydraulic package into one seamless platform. The result is faster feeding, stronger delimbing, smoother operation, and the production contractors need to stay profitable.
Measuring
DESIGNED FOR REAL WORLD
Every component on the Rebel T22HD was designed with one goal: maximize uptime. From the rugged steel frame and protected components to the simplified service access and heavy-duty hydraulic systems, the T22HD is built to keep working in demanding hardwood, softwood, and mixed-wood applications. Less downtime. Faster service. More production.
Feature HighlightsDimensions |
||
| The Rebel T22HD features a strong frame designed to withstand difficult hardwood and heavily branched softwood. Committing to the highest quality materials available, the T22HD is a combination of lightweight engineering and brute strength steel. Can measure up to 78 cm | 31" wood diameters, but optimal feeding is 10 cm – 61 cm | 4" – 24". Full 360° rotation allows for working in tight areas and eliminates base machine hose damage. | ||
| Weight | 2,482 kg | 5,470 lbs |
| Delimb Opening | 76 cm | 30 inches |
| Feed Opening | 78 cm | 31 inches |

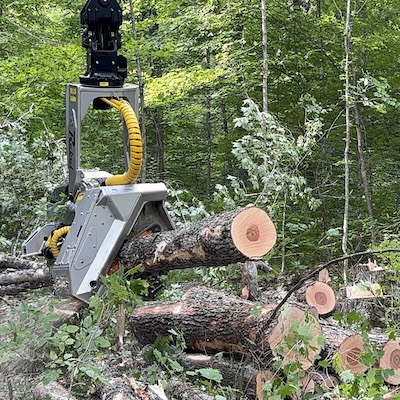

Feature HighlightsSaws |
|||
| The Rebel T22HD standard configuration features a 3/4" auto tensioning main saw and a 0.404" auto tensioning top saw. Optional 0.404" auto tension main saw can be requested. One chain lube tank serves both the main saw and top saw. | |||
| Main Saw | 3/4" x 56 chain | 45cc motor | 89cm, 35" bar |
| Main Saw Option | 0.404" x 94 chain | 19cc motor | 74cm, 29" bar |
| Top Saw | 0.404" x 74 chain | 10cc motor | 63cm, 25" bar |
| Chain Lube Capacity | 13 litre | 3.5 gal | |
Feature HighlightsMeasuring |
|
| By far the most important feature when working long days is the control system. The operator has to control the harvester like it's an extension of their own hands and the Cypress measuring system bridges that gap. The ease of use, simplicity, reliability and smooth operation make it the most popular measuring system on the market. Prioritizing accurate measuring, log quality checks will become a breeze. As good as the measuring system is, it's only as good as the components, the machine and the operator. The Rebel features well-guarded and robust sensors to assist high quality measurements and log quality. | |
| Length | Lifetime warranty contactless magnetic encoder |
| Find End | Laser sensor |
| Control grips | Rocker type or trigger type |
| Grapple | Yes, can operate optional grapple attachments |
| Heel rack | Yes, can function heel racks |
| Levelling | Yes, can control base machine levelling |
| Remote Assistance | Yes, factory direct remote assistance log in support |

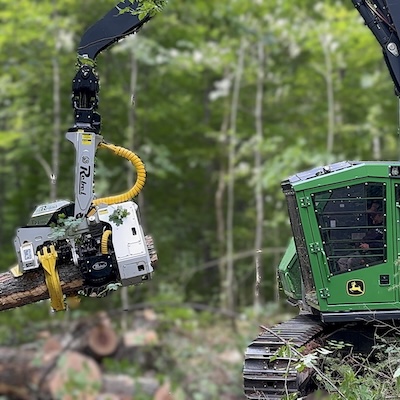

Feature HighlightsPower |
||
| Drive roller | 3 | |
| High Torque Option | 1043cc | 630cc |
| Estimated feed speed | 5.2 m/s | 17 ft/sec |
| High Speed Option | 702cc | 400cc |
| Estimated feed speed | 6.5 m/s | 21 ft/sec |
| Standard Center wheel | V-ShapeThumbnail | |
| Optional Center Wheel | Thumbnail | |
| Standard Outer Wheels | V-Tech | |
| Optional Outer Wheels | Thumbnail | |

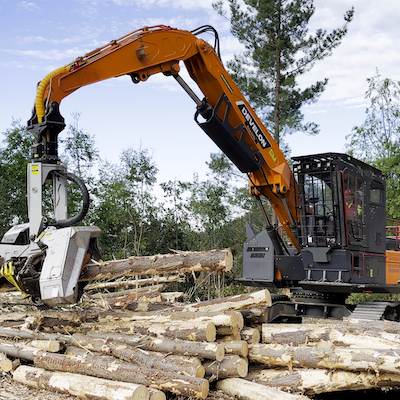

Feature HighlightsRequirements |
|
| Base Machine | 20-35 ton |
| Max Pressure | 330 bar, 4800 psi |
| Min Flow | 350 lpm, 93 GPM @ 150 bar, 2175 psi |
| Electrical | 24v/15a supply to attachment |
BUILT WITH PURPOSE
Every Rebel T22HD begins with a simple goal: build a better harvester head. Drawing on more than 16 years of rebuilding and supporting forestry equipment, our engineering team transformed countless lessons from the field into practical design improvements. From the first sketch to the finished product, every detail was developed to improve reliability, simplify maintenance, and maximize productivity in demanding forestry conditions.
